DL-DD-2, Natural Polypropylene Duraline DI Water Laboratory Faucet, Deck Mount, Duraline Control Valve, Removable Serrated Barb Tip Outlet, 3/8" Fem NPT Suppley Inlet

3d CAD Model

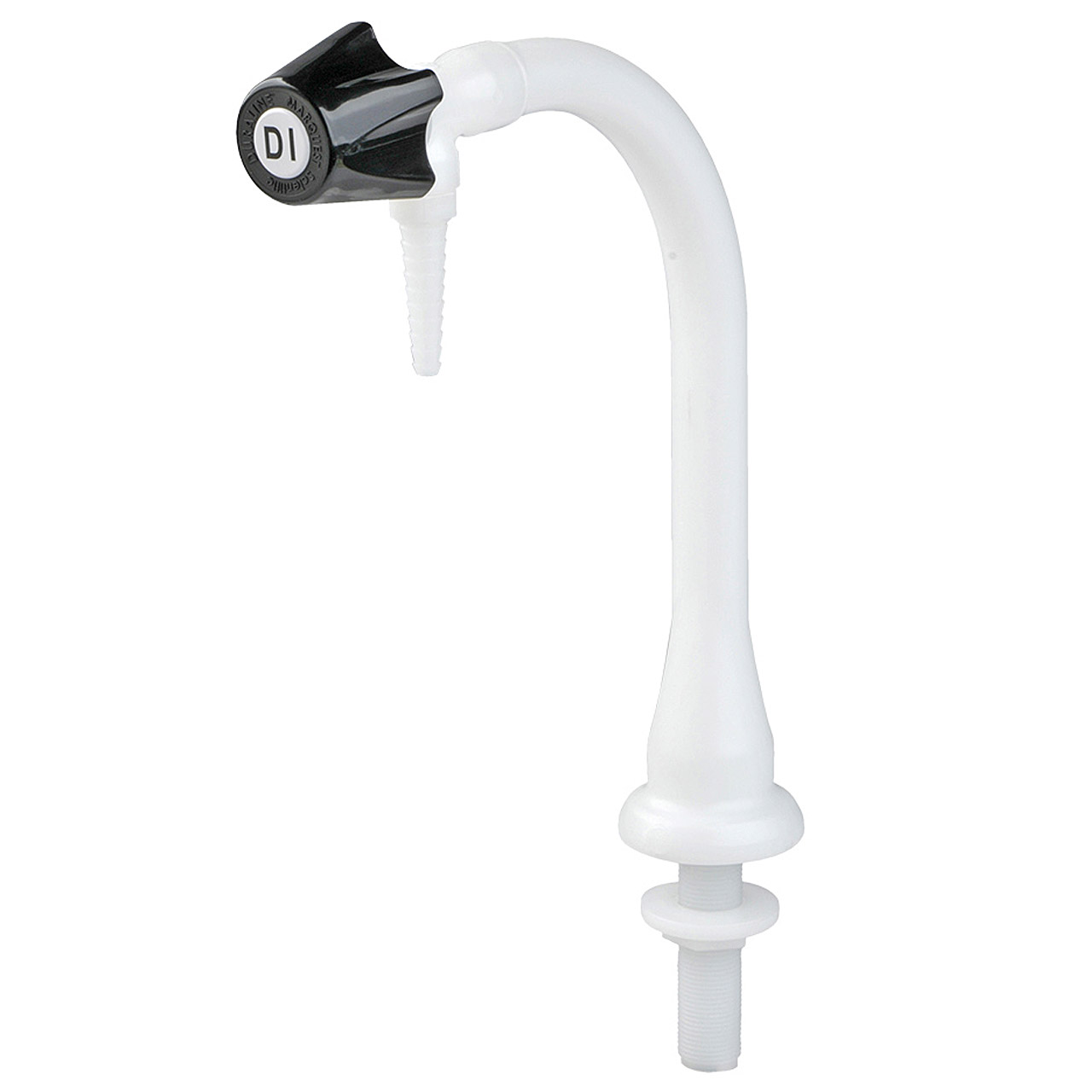

Product Image

• Fields of Application: Distilled, Deionized, RO, Ultra Filtrated Water, Chemical Dispensing.
• Max flow of 2.5 GPM @ 80 PSI, Full Open
• Heavy wall, injection molded stanchion prevents breakage
• Ruggedly designed, point of use control valve for constant on/off use
• Removable Serrated Barb Tip (Leaves 1/4" Fem NPT Outlet), attach accessory of your choice
• "Duraline" zero dead leg control valve offer easy open/close operation (Hard stop), 120 deg full flow to closed
• No elastomers, metals, or lubricants used in construction
• All components designed for high traffic, hard use environments
• FDA, USDA, and USP standards are either met and/or exceeded
• Ultra smooth internal flow path
• PTFE sealed, encapsulated PTFE shut off seal for unlimited life
• Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
• Duraline control valve is completely renewable by replacing the internal cartridge, per SEFA 7-2010-8.2a
• Positive stop at off position
• 3/8" Fem NPT inlet supply connection, 3/8" O.D. tube x 3/8" MNPT compression tube fitting inlcluded
