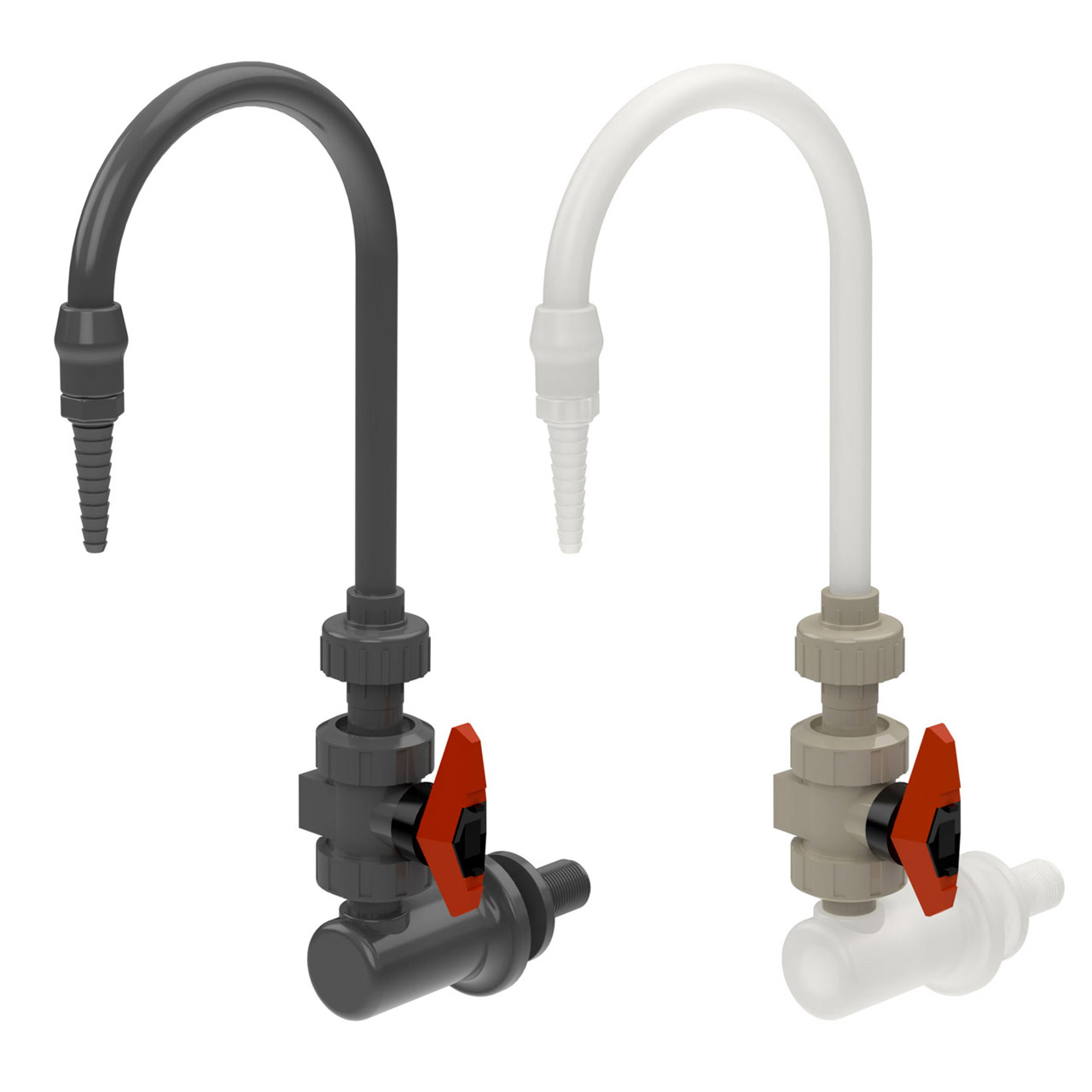

Wall Mount Lab Faucets with 360° Swivel Gooseneck (+GF+ 1/4 Turn Ball Control Valve): PVC, Natural Polypropylene, and PVDF
These high-purity lab faucets feature an integrated swivel union that enables complete 360° rotation of the gooseneck without loosening any components, delivering superior flexibility and ease of use. Engineered for distilled, deionized, RO, ultra-filtered water, and chemical dispensing applications, the series delivers up to 6.5 GPM at 80 PSI. Injection-molded construction and a heavy-wall, custom-extruded gooseneck provide rigidity and durability. Available in PVC, unpigmented Natural Polypropylene, and PVDF.
- 360° Swivel Gooseneck — Integrated swivel union provides full, free rotation while maintaining seal integrity.
- +GF+ 1/4 Turn Ball Control Valve — Quick on/off actuation with PTFE seats and FKM O-rings for smooth operation and chemical resistance.
- Flow Performance — Maximum 6.5 GPM @ 80 PSI.
- Removable Serrated Barb Tip — Accepts 1/4"–1/2" I.D. tubing; removing the tip leaves a 1/4" Female NPT outlet.
- Rugged Build — Injection-molded body with heavy-wall, custom-extruded gooseneck for increased rigidity.
- Material Options — PVC, Natural Polypropylene (unpigmented), and PVDF to match purity and chemical compatibility needs.
- Standards — Materials designed to meet or exceed FDA, USDA, and USP expectations.
Inlet Connections
Standard 3/8" Female NPT inlet. Each faucet includes a Jaco 3/8" O.D. × 3/8" MNPT compression tube fitting (material matched to faucet body: polypropylene for PP, PVDF for PVDF, etc.).
Deck Panel Mounting
Includes 3" through-deck nipple shank, ring nut, and casual-water gasket. Requires a 1" diameter mounting hole; maximum deck thickness 3".
Max Pressure Ratings
- PVC: 180 PSI @ 72°F
- Natural Polypropylene: 150 PSI @ 72°F
- PVDF: 220 PSI @ 72°F
Materials of Construction
- Body & Gooseneck: Injection-molded/extruded PVC, Natural Polypropylene, or PVDF (unpigmented for PP/PVDF)
- Valve Seats: PTFE (in +GF+ ball valve)
- Valve & Swivel Seals: FKM O-rings
For additional specifications and downloads, please refer to the individual item numbers below.
