Item # LG-WD-HC2, Lab Faucet, Wall Mount, Hot & Cold Duraline Control Valves, Removable Serrated Barb Tip (Leaves 1/4" Female NPT Outlet), 3/8" Female NPT Hot & Cold Supply Inlet Connections, Natural Polypropylene
Data Sheet

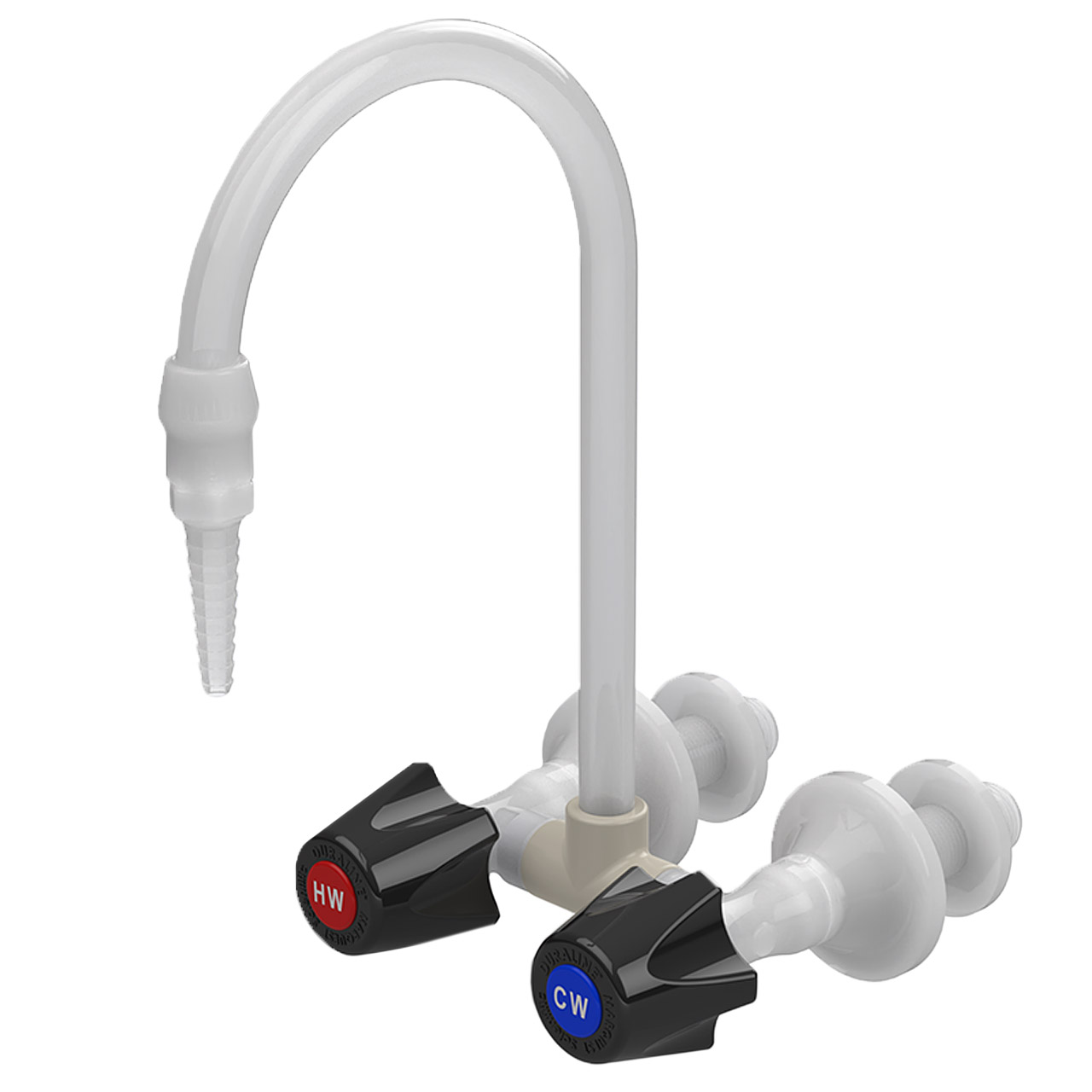

Product Image
The Marquest LG-WD-HC2 Lab Faucet is a wall-mount unit designed for hot and cold water control in laboratory environments. Constructed from Natural Polypropylene with PTFE seals, this faucet provides chemical resistance and durability for research, analytical, and medical laboratory applications. Built without metals, elastomers, or lubricants, it maintains compatibility with various laboratory fluids.
The faucet incorporates Duraline control valves for accurate regulation of hot and cold water flows. These valves feature PTFE sealing for reliable operation in precision laboratory tasks. The design includes a removable serrated barb tip that reveals a 1/4" female NPT outlet, with 3/8" female NPT inlet connections for hot and cold water supply, compatible with standard laboratory plumbing systems.
Key Features:
- Natural Polypropylene Construction: Provides chemical resistance and durability in laboratory settings
- Wall-Mount Design: Optimizes laboratory workspace with accessible water control
- PTFE Seals: Ensures leak-free operation and chemical compatibility
- Hot & Cold Duraline Control Valves: Allows precise temperature regulation with 120° rotation from full flow to closed
- Removable Serrated Barb Tip: Converts to 1/4" female NPT outlet for flexible connection options
- Standard Connections: 3/8" female NPT hot and cold inlet supply connections
- Non-contaminating Materials: Constructed without metals, elastomers, or lubricants
- Temperature Range: Suitable for use between 46°F to 176°F (8°C to 80°C)
- Working Pressure: Maintains performance up to 240 PSI (depending on operating temperature)
- Easy Installation: Designed for straightforward wall mounting (see installation instructions)
- Renewable Design: Control valves can be serviced by replacing internal cartridges (DL-RC-PVD)
Replacement Cartridge:
- Model: DL-RC-PVD
- Construction: PVDF body with PTFE seals
- Compatibility: All Duraline 90° valves
- Compliance: Fully compliant with SEFA 7-2010, section 8.2a for renewable valve construction
Technical Specifications:
- Material: Natural Polypropylene body with PTFE seals
- Maximum Flow Rate: 2.5 GPM @ 80 PSI
- Weight: 1.4 lbs (0.64 kg) fully assembled, poly bagged
- Inlet Connections: 3/8" Female NPT (hot and cold)
- Outlet Connection: Removable serrated barb tip (leaves 1/4" Female NPT)
- Control: Duraline hot/cold control valves, 120° rotation
- Handle Design: Black handles with red (hot) and blue (cold) markers and white "HW" and "CW" text per plumbing code
- Replacement Cartridge: DL-RC-PVD renewable cartridge with PVDF body and PTFE seals, compliant with SEFA 7-2010, section 8.2a
Applications:
- Research laboratories
- Chemical analysis facilities
- Medical and pharmaceutical laboratories
- Educational institutions
- Quality control laboratories
- Water purification systems
For detailed installation instructions, specifications, and ordering information, please contact our sales department at 1-866-452-2349 or sales@marquestscientific.com.
