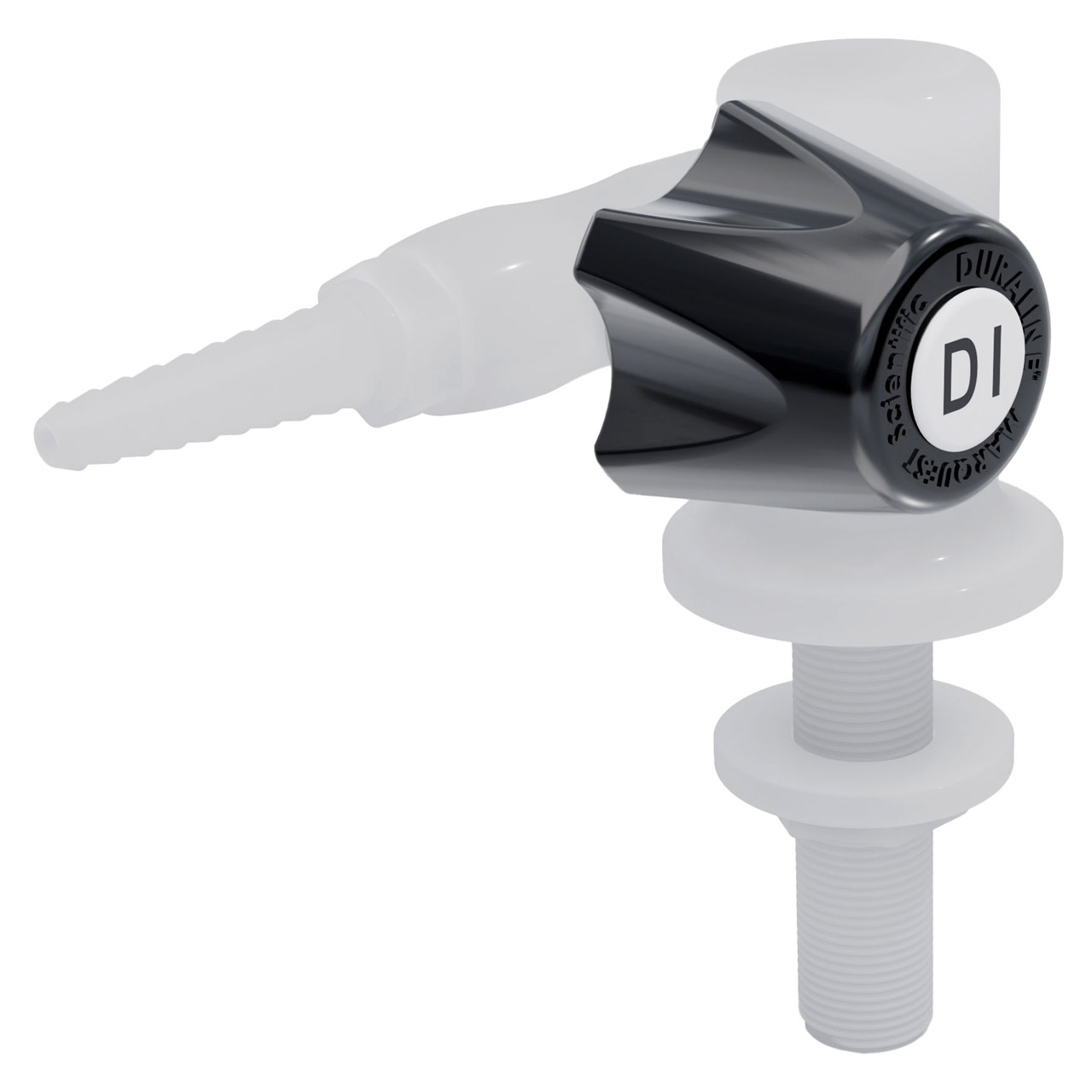

Item # LT-V-R3, Laboratory Turret, Deck or Wall Mounted, Duraline Control Valve, Handle on Right, High Purity PVDF

List Price $269.50

    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites


Distilled, Deionized, & RO Water Applications as well as Chemical Dispensing.
  • Virgin Solef PVDF material listed under NSF Standard 14/61 for both potable water and DWV applications and FDA approved
  • FDA, USDA, and USP standards are either met and/or exceeded.
  • No Elastomers (O-Rings), Metals or Lubricants No Corrosion, No Contamination.
  • Beautifully finished to enhance all installations
  • All injection molded, rugged design and construction
  • Standard 3/8" female NPT inlet connection
  • Removable Outlet barb fitting connects to different size tubing (Leaves 1/4" Fem NPT outlet when removed)
  • Valve is Crevice Free with Zero Dead Leg
  • PTFE sealed, encapsulated PTFE shut off seal for unlimited life
  • Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
  • Duraline control valve is completely renewable by replacing the internal cartridge, per SEFA 7-2010-8.2a
  • Positive stop at off position






Specifications

Inlet Connection

3/8" NPT, Female

Materials

PVDF

Configuration

Deck or Wall Mount, Right Handle

Note:

All Units can be either Deck Mounted or Wall Mounted

1. All assemblies include a 3" Thru-Deck Nipple, Ring Nut, and Causual Water Gasket.
2. Inlet Connection on all assemblies is 3/8" Femal NPT.
3. All assemblies require 1" diameter hole for mounting.
4. Maximum deck or wall thickness is 3".


 DOWNLOADS

Sales Drawing
(PDF, 157KB)

Dimensional Drawings
(PDF, 123KB)
