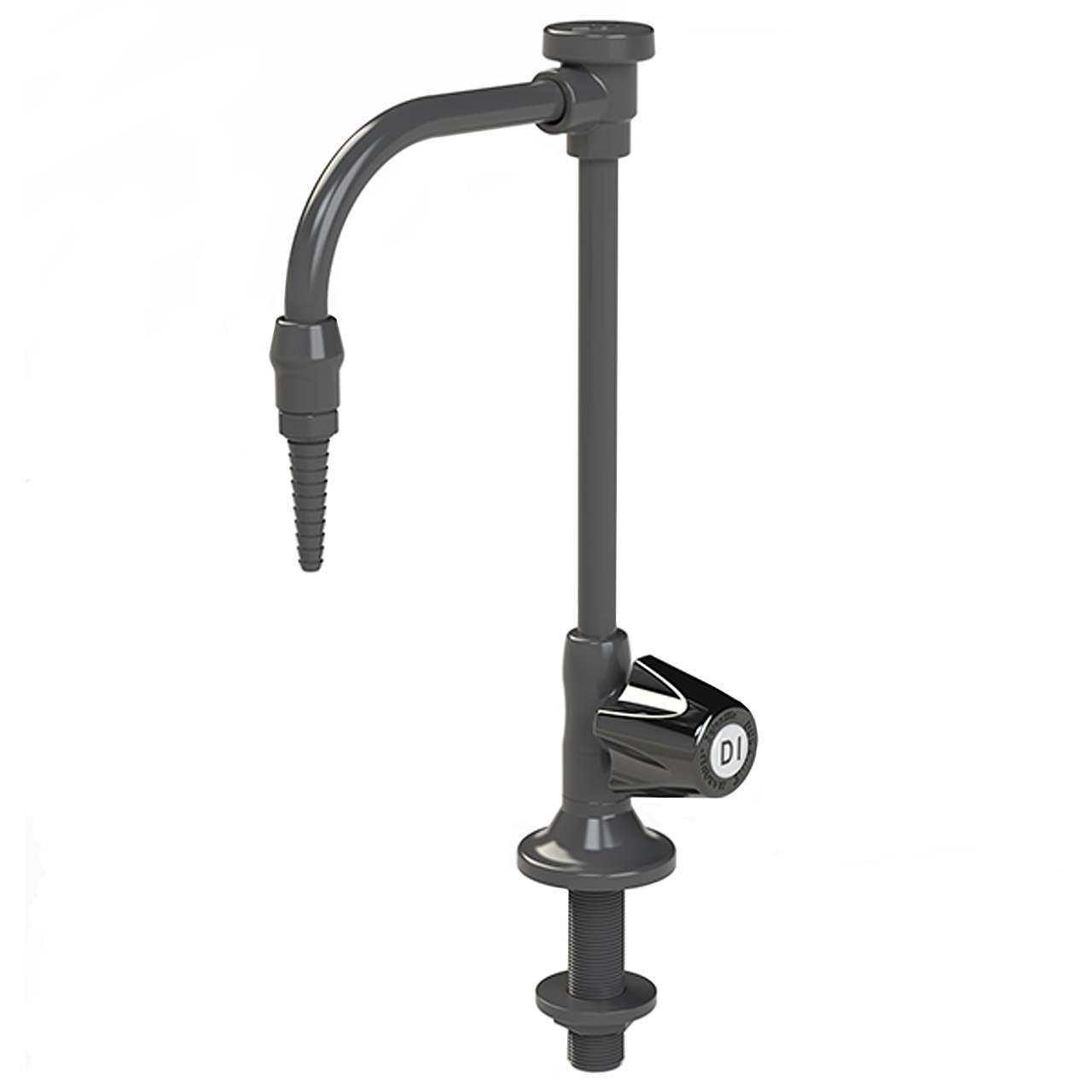

LGV-DD-B1, PVC Lab Faucet, Deck Mount, Integral Atmospheric Vacuum Breaker, Duraline Cntrl Valve, Rem Ser Barb Tip, 3/8" Fem NPT Inlet, Back Handle
Product Image
- Back Handle Series LG Lab Faucet w/ Atmospheric Vacuum Breaker Fields of Application: Distilled, Deionized, Pharma Grade, RO, Ultra Filtrated Water
- Chemical Dispensing.Reagent Grade Laboratory Water Type II, III and USP Type Water
- The installed atmospheric vacuum breaker is used to prevent back-siphonage of contaminated water into a potable water system. They are not designed to protect against backpressure conditions; protection against backpressure may require installation of a backflow preventer in the water supply line.
- Max flow of 2.5 GPM @ 80 PSI, Full Open
- Removable Serrated Barb Tip (Leaves 1/4" Fem NPT Outlet), attach accessory of your choice
- "Duraline" zero dead leg control valve offers easy open/close operation, 120 deg full flow to closed
- No lubricants or wetted metals used in construction
- All components designed ;for ;high traffic, hard use environments
- FDA, USDA, ;and USP standards ;are either met and/or exceeded
- Ultra smooth internal flow path
- Unique heavy wall construction
- Control Valve is PTFE sealed, encapsulated PTFE shut off seal for unlimited life
- Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
- Duraline control valve is completely renewable by replacing the internal cartridge, per SEFA 7-2010-8.2a
- Positive stop at off position
- PVC Lab Faucet, Deck Mount, Integral Atmospheric Vacuum Breaker, Duraline Cntrl Valve, Rem Ser Barb Tip, 3/8" Fem NPT Inlet
- 3/8" Fem NPT inlet supply connection, 3/8" O.D. tube x 3/8" MNPT compression tube fitting inlcluded
- 3/8" Fem NPT inlet supply connection, 3/8" O.D. tube x 3/8" MNPT compression tube fitting inlcluded
- 3/8" Fem NPT inlet supply connection, 3/8" O.D. tube x 3/8" MNPT compression tube fitting inlcluded
