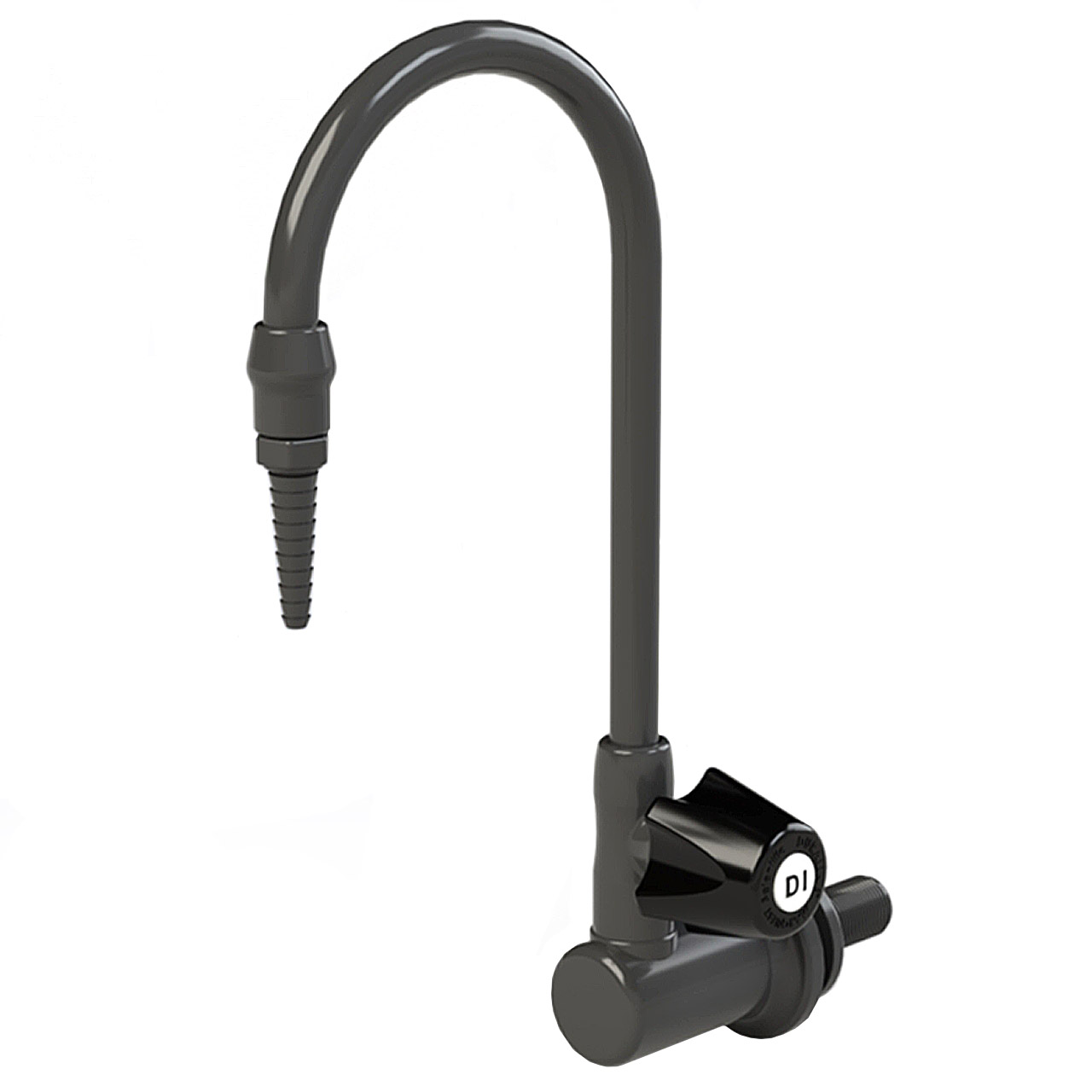

Item # LG-WD-R1: PVC Laboratory Faucet, Wall Mount, Duraline Control Valve

The LG-WD-R1 is a high-quality, wall-mounted PVC laboratory faucet designed for use with distilled, deionized, RO, and ultra-filtrated water. Featuring a Duraline control valve, removable serrated barb tip, and right-hand operation, this faucet is built for durability and precision in demanding laboratory environments. Its construction ensures no contamination and compliance with FDA, USDA, and USP standards.

Product Details

• Wall Mount
• Right Handle
• 3/8" Female NPT Inlet
• Removable Serrated Barb Tip

Applications

Suitable for Distilled, Deionized, RO, and Ultra Filtrated Water Applications

Key Features

• Max flow of 2.5 GPM @ 80 PSI
• Removable Serrated Barb Tip (Leaves 1/4" Female NPT Outlet)
• "Duraline" zero dead leg control valve
  • Easy open/close operation
  • 120 degree full flow to closed
• No elastomers, metals, or lubricants used in construction
• All components designed for high traffic, hard use environments
• Compliant with FDA, USDA, and USP standards (met and/or exceeded)
• Ultra smooth internal flow path
• Unique heavy wall construction
• PTFE sealed, encapsulated PTFE shut off seal for unlimited life
• Black handle with white marker and black "DI" text (per SEFA code recommended practice No. 7 for DI Water Applications)
• Duraline control valve is completely renewable by replacing the internal cartridge (per SEFA 7-2010-8.2a)
• Positive stop at off position

Connections

• 3/8" Female NPT inlet supply connection
• 3/8" O.D. tube x 3/8" MNPT compression tube fitting included

Additional Information

• Attach accessory of your choice to the 1/4" Female NPT outlet (when serrated barb tip is removed)
