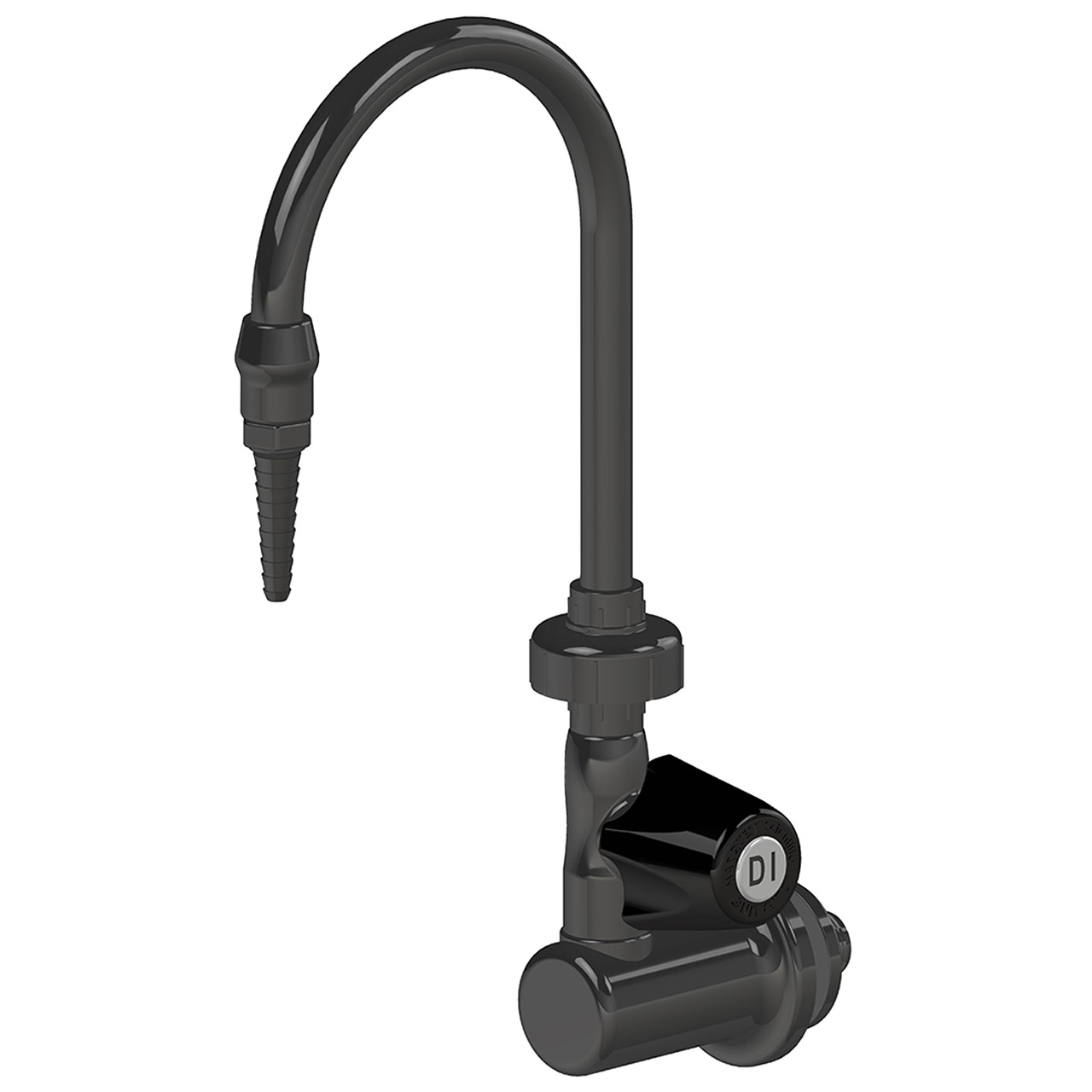

LG-WDSU1.5-R1, PVC Lab Faucet, Wall Mount, Duraline Control Vlve, Swivel Union, 1.5" Shank Length, 3/8" Fem NPT Inlet, Handle on Right

Product Image

• LG-WDSU1.5-R1 is a wall mount swivel lab faucet suitable for distilled, deionized, and RO water applications, as well as chemical dispensing.
• Geon HR-5509 PVC material, listed under NSF Standard 14/61 for both potable water and DWV applications and FDA compliant
• Compliance with FDA, USDA, and USP standards, either meeting or exceeding the requirements
• No metals, no corrosion, and no contamination
• Swivel union with Viton O-Ring
• Beautifully finished to enhance all installations
• All injection molded, rugged design and construction
• Full flow at 1 full turn
• Standard 3/8" female NPT inlet connection
• Removable outlet barb fitting that connects to different size tubing
  • When removed, the barb tip leaves a 1/4" female NPT outlet for connecting to accessories and other fittings
• Duraline control valve with encapsulated PTFE shut-off seal:
  • PTFE on/off seal is easily replaced in the field, no tools required
  • Exceptional low torque on/off operation
  • Encapsulated PTFE shut-off seal provides an ideal geometry for keeping the PTFE in compression for constant on/off operation
• Duraline control valve is crevice-free with zero dead leg

Wall Panel Mounting: The lab faucet assembly includes a 1.5" through-wall nipple shank, ring nut, and casual water gasket. All assemblies require a 1" diameter hole for mounting, and the maximum wall thickness is 1.5".
