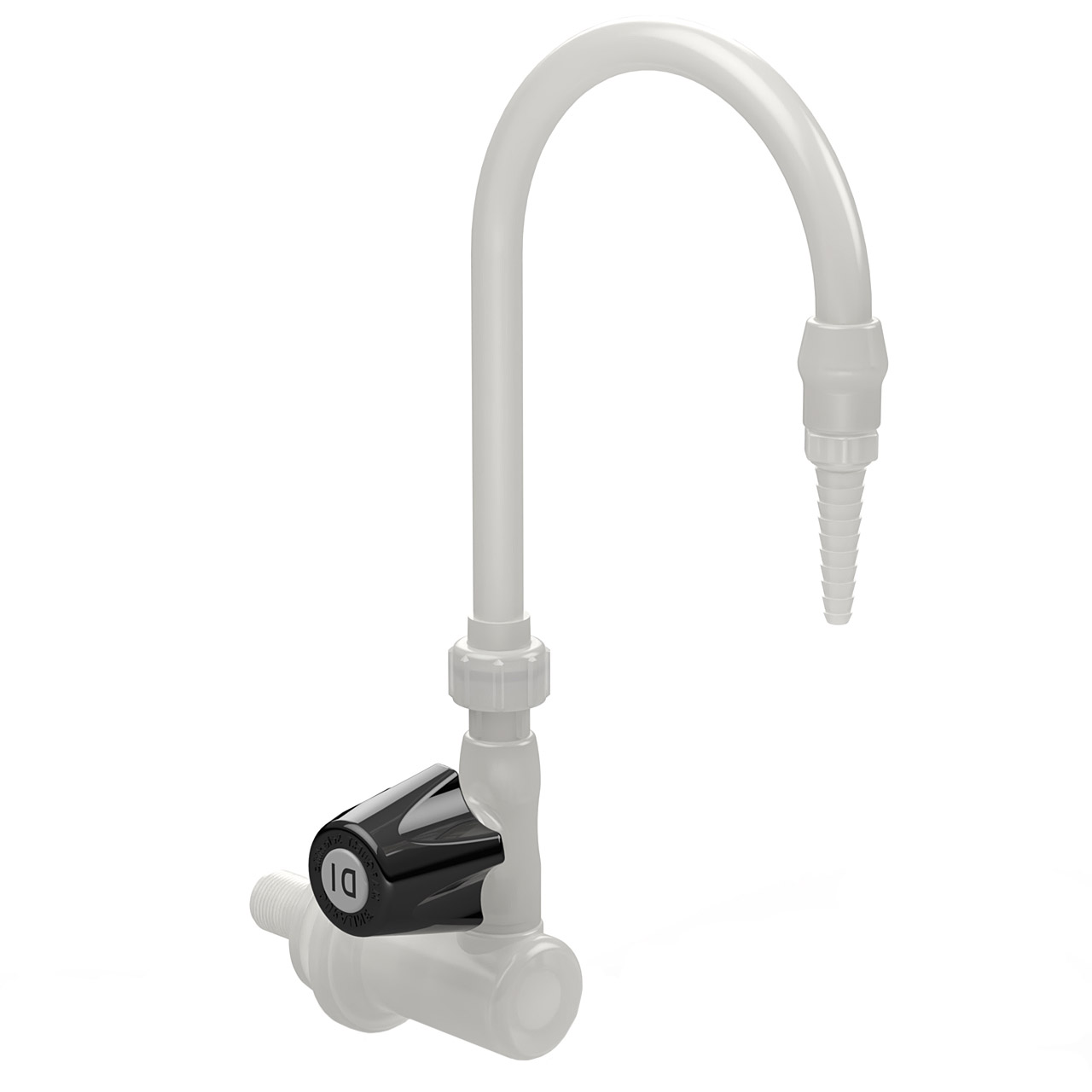

LG-WDSU1.5-L3, PVDF Lab Faucet, Wall Mount, Duraline Control Vlve, Swivel Union, 1.5" Shank Length, 3/8" Fem NPT Inlet, Handle on Left

Geon HR-5509 PVDF Material. Listed under NSF Standard 14/61 for both potable water and DWV applications and FDA approved
FDA, USDA, and USP standards are either met and/or exceeded.
No Metals, No Corrosion, No Contamination.
Swivel Union has Viton O-Ring
Beautifully finished to enhance all installations
All injection molFull Flow at 1 full turnded, rugged design and construction
Standard 3/8" female NPT inlet connection
Outlet barb fitting connects to different size tubing
Duraline Control Valve with encapsulated PTFE Shut Off Seal:
PTFE on/off seal is easily replaced in the field, no tools required
Exceptional low torque on/off operation
Encapsulated PTFE shut off seal provides an ideal geometry for keeping the PTFE in compression for constant on/off operation
Duraling control valve is crevice Free with zero dead leg

Materials	N/A PVDF
Configuration	N/A Wall Mnt, Left Handle
Inlet Connection	N/A 3/8" Fem NPT
Max PSI	N/A 180 PSI
Options	N/A Swivel, 1.5" Shank
Shipping Note	N/A We will let you know the shipping charges once we receive the order.
