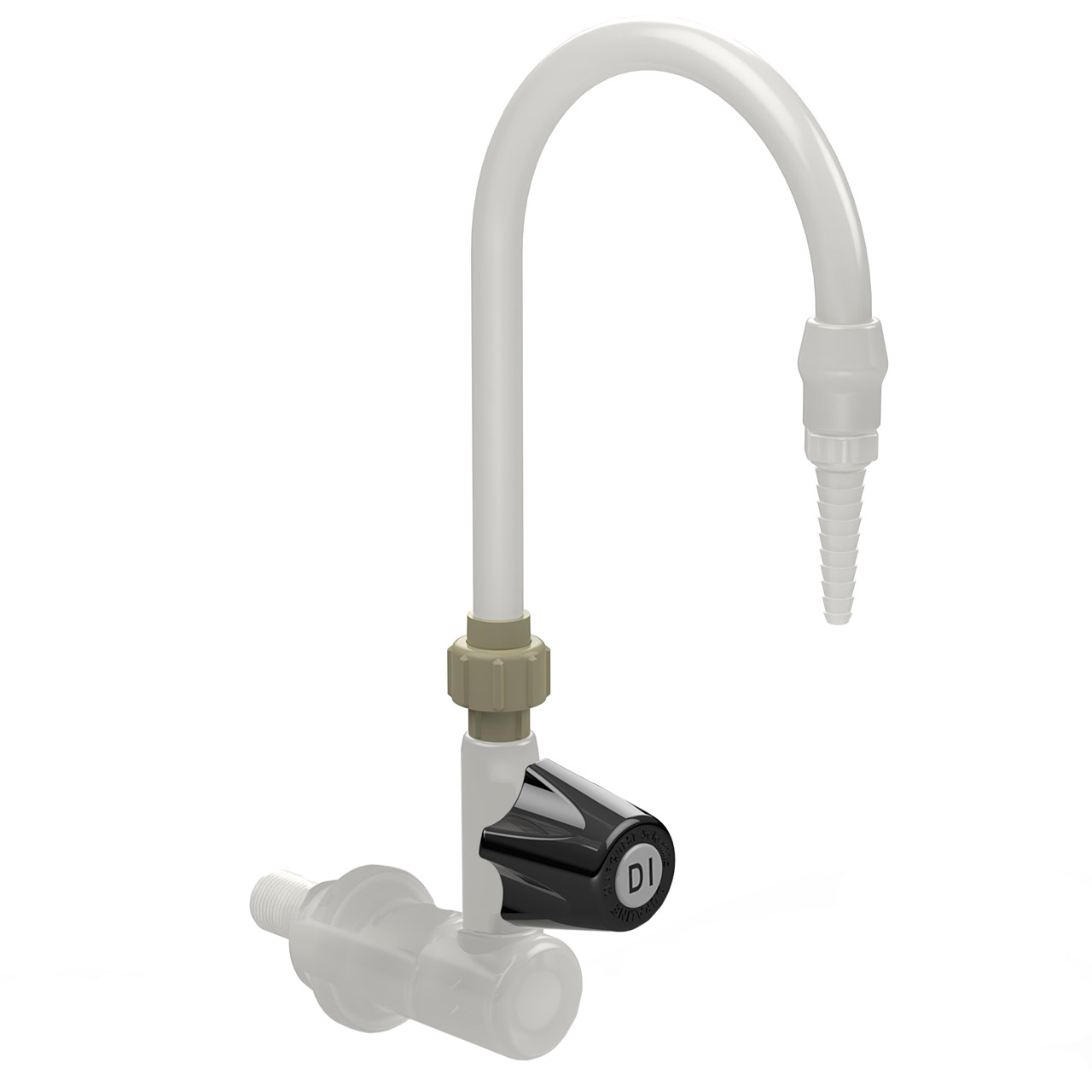

Wall Mount Swivel Lab Faucet (Duraline Control Valve): Natural Polypropylene Material
Part No. LG-WDSU1.5-F2 is a wall mount swivel lab faucet made from natural polypropylene, suitable for distilled, deionized, and RO water applications, as well as chemical dispensing. Please call us toll-free at 866-452-2349 for ordering information. We can fabricate this faucet to your specifications.
The faucet features:
Natural polypropylene material, FDA approved and compliant with USP Class VI standards
No metals, no corrosion, and no contamination
Swivel union with Viton O-Ring
Beautifully finished to enhance all installations
All injection molded, rugged design and construction
Full flow at 1 full turn
Standard 3/8" female NPT inlet connection
Removable outlet barb fitting that connects to different size tubing
When removed, the barb tip leaves a 1/4" female NPT outlet for connecting to accessories and other fittings
Duraline control valve with encapsulated PTFE shut-off seal:
PTFE on/off seal is easily replaced in the field, no tools required
Exceptional low torque on/off operation
Encapsulated PTFE shut-off seal provides an ideal geometry for keeping the PTFE in compression for constant on/off operation
Duraline control valve is crevice-free with zero dead leg
Handle on the right side for easy operation
Wall Panel Mounting: The lab faucet assembly includes a 1.5" through-wall nipple shank, ring nut, and casual water gasket. All assemblies require a 1" diameter hole for mounting, and the maximum wall thickness is 1.5".
For additional specifications and customization options, please contact us toll-free at 866-452-2349.
