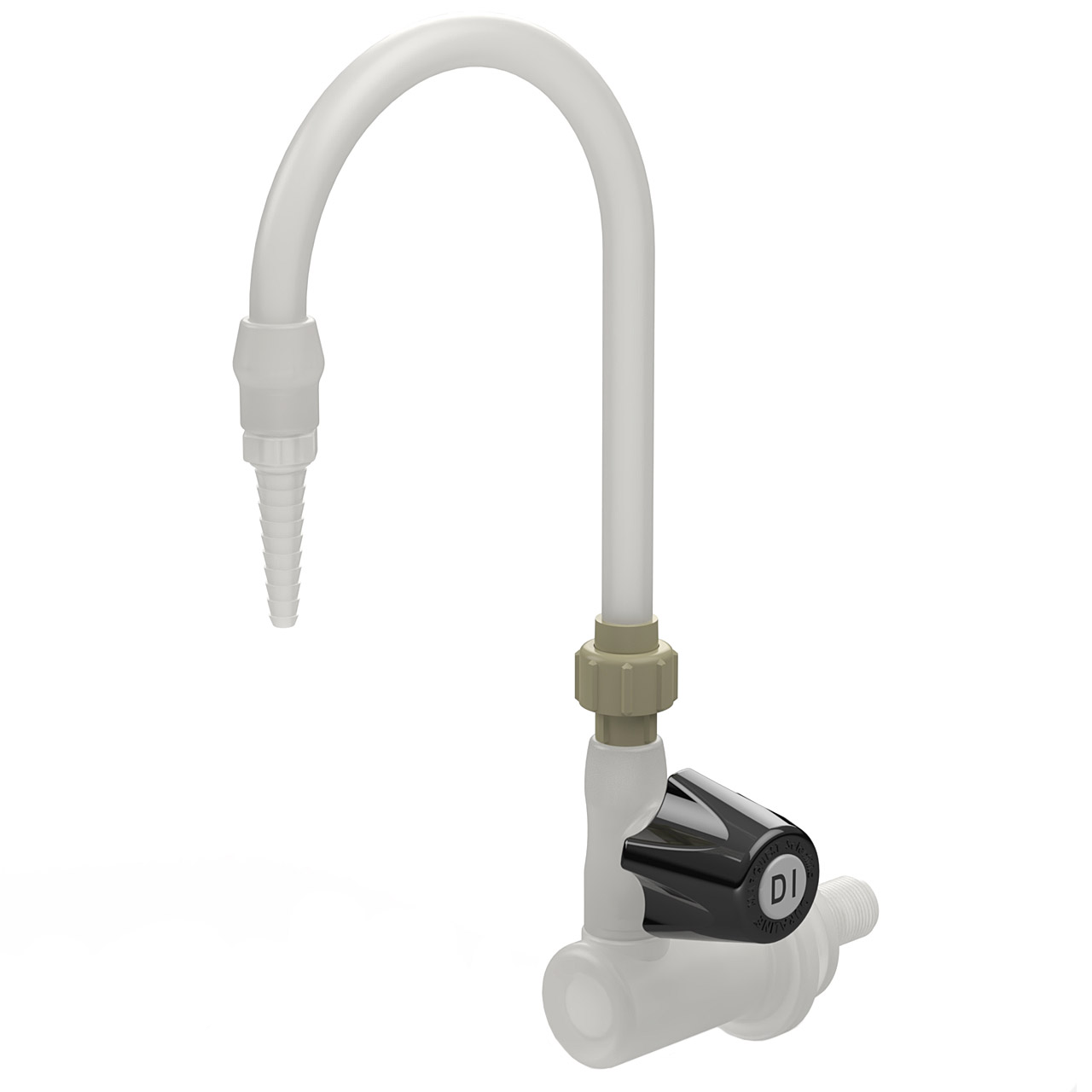

LG-WDSU-R2, Natural Polypro Lab Faucet, Wall Mount, Duraline Cntrl Valve, Swivel Union, 3/8" Fem NPT Inlet, Handle on Right

Product Image

• Natural polypropylene material, NSF listed under 14/61 for both potable water and DWV applications
• Maximum flow rate of 2.4 GPM at 80 PSI when fully open
• All injection molded, rugged design and construction
• Heavy-wall, custom-extruded gooseneck component for increased rigidity
• Standard 3/8" female NPT inlet connection
• Includes a Jaco 3/8" O.D. compression tube fitting
• Removable serrated outlet barb fitting that accepts 1/4"-1/2" I.D. tubing
  • When removed, the barb tip leaves a 1/4" female NPT outlet for connecting to accessories and other fittings
• Duraline control valve with all PTFE sealing:
  • Encapsulated PTFE shut-off seal provides an ideal construction geometry for keeping the PTFE in compression for constant on/off operation
  • Crevice-free with zero dead leg
• Swivel union provides 360 degrees of rotation without the need to loosen the union

Inlet connections: The faucet comes with a standard 3/8" female NPT inlet and includes a polypropylene Jaco 3/8" O.D. x 3/8" male NPT compression tube fitting.

Wall Panel Mounting: The lab faucet assembly includes a 2.5" through-wall nipple shank, ring nut, and casual water gasket. All assemblies require a 1" diameter hole for mounting, and the maximum wall thickness is 2.5".

Max Pressure Rating:

• natural polypropylene: 180 PSI @ 72 ° Fahrenheit

Materials of Construction:

• Lab faucet body & components: Injection molded and extruded in natural polypropylene, meeting or exceeding FDA, USDA, and USP standards. Please contact us for further validation.
• Duraline control valve seal & seat: The stem seal and encapsulated shut-off seal are machined from 100% virgin PTFE (Polytetrafluoroethylene).

For additional specifications and customization options, please contact us toll-free at 866-452-2349.
