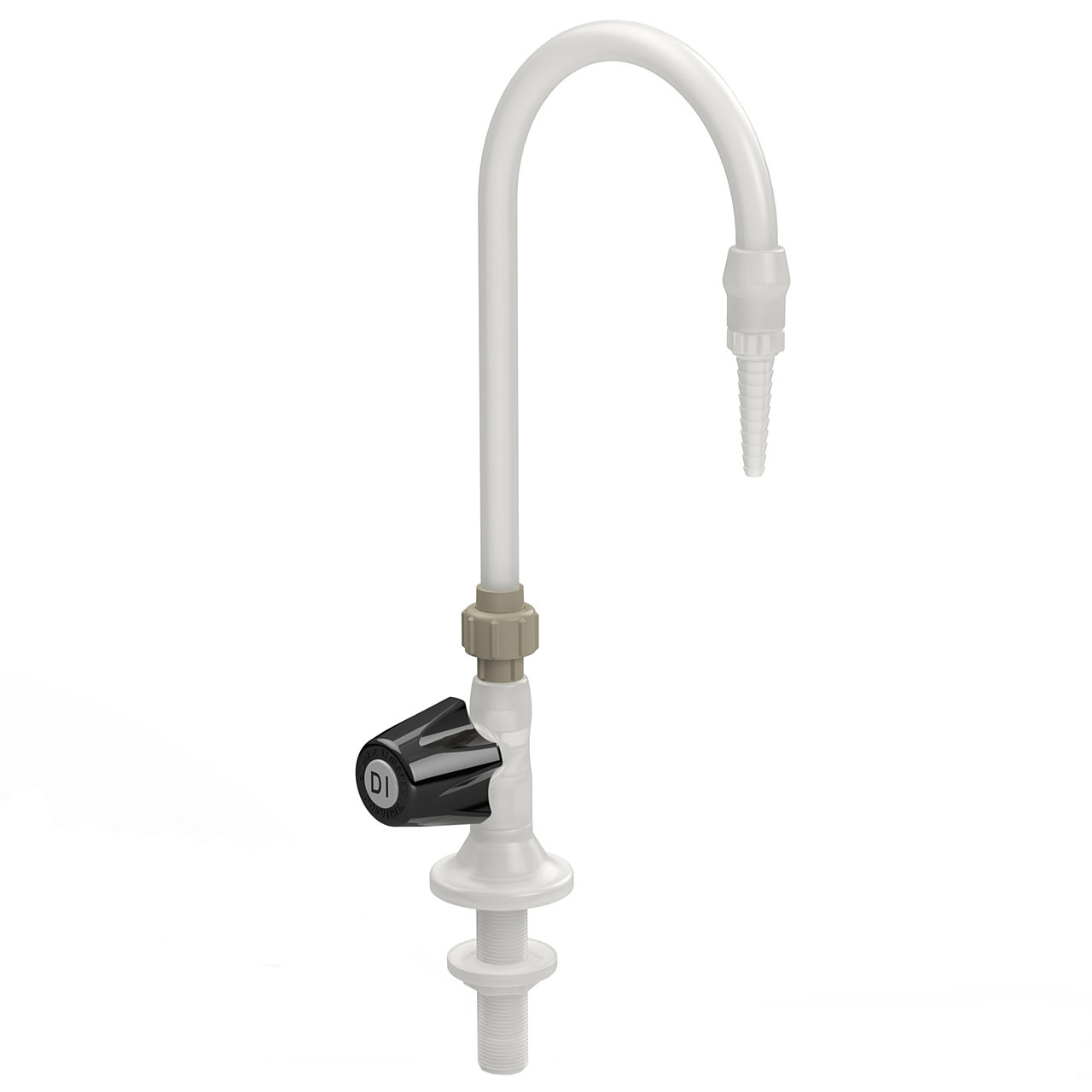

Item# LG-DDSU-L2 | Natural Polypropylene Lab Faucet, Deck Mount, Duraline Control Valve, Swivel Union, 3/8" Fem NPT Inlet, Handle on Left

The LG-DDSU-L2 Natural Polypropylene Laboratory Faucet is designed for distilled, deionized, RO, ultra-filtered water, and chemical dispensing. It pairs a 360° swivel gooseneck for flexible positioning with a Duraline zero dead leg control valve for precise, reliable flow control in high-purity lab environments.

Product Image

Data Sheet

• 360° Swivel Gooseneck
  Integrated swivel union allows full rotation of the gooseneck without loosening components, maintaining seal integrity and enabling easy positioning.
• High Flow Performance
  Delivers up to 2.4 GPM at 80 PSI for efficient dispensing in lab environments.
• Removable Serrated Barb Tip
  Accepts 1/4"–1/2" I.D. tubing; removing the tip leaves a 1/4" Female NPT outlet for accessories.
• Duraline Control Valve
  PTFE-sealed with an encapsulated modified PTFE shut-off seal for low gas permeability, improved creep/extrusion resistance, and extended service life.
• Zero Dead Leg Design
  Crevice-free internal geometry helps minimize stagnation to support purity.
• Handle Orientation – Left
  Left-hand handle configuration for user preference and layout flexibility.
• Rugged Construction
  All injection-molded body with heavy-wall, custom-extruded gooseneck for increased rigidity and durability.
• Standard Inlet Connection
  3/8" Female NPT inlet; includes polypropylene Jaco 3/8" O.D. compression tube x 3/8" MNPT fitting.
• Deck Panel Mounting
  Includes 3" through-deck nipple shank, ring nut, and casual-water gasket; fits 1" diameter hole; max deck thickness 3".
• Pressure Rating
  150 PSI @ 72°F (Natural Polypropylene).
• Material Specifications – Natural Polypropylene
  Unpigmented (natural) polypropylene (Profax family) for low extractables, chemical resistance, and clean appearance. USDA and FDA compliant; also suitable for applications meeting USP expectations. Contact us for validation details.
• Seal Material – Modified PTFE
  White modified PTFE shut-off seals (Fluoroloy® A02 class) optimized for light dynamic/static service with low gas permeability and enhanced creep/extrusion resistance.
