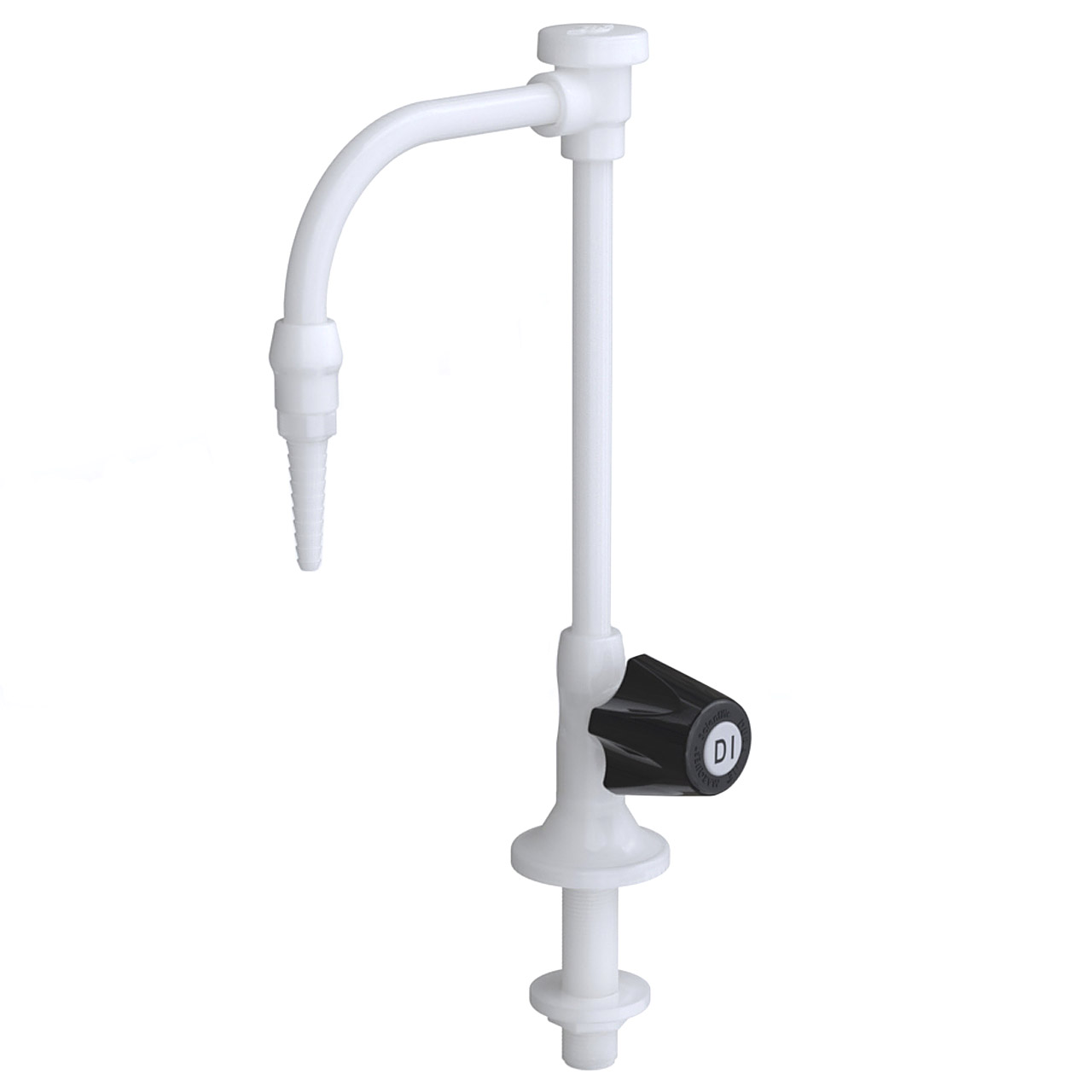

LGV-DD-R2, Item # LGV-DD-R2, Natural Polypropylene Lab Faucet, Deck Mount, Integral Atmospheric Vacuum Breaker, Duraline Cntrl Valve, Rem Ser Barb Tip, 3/8" Fem NPT Inlet, Right Handle

Product Image

• The installed atmospheric vacuum breaker is used to prevent back-siphonage of contaminated water into a potable water system. They are not designed to protect against backpressure conditions; protection against backpressure may require installation of a backflow preventer in the water supply line.
• Max flow of 2.5 GPM @ 80 PSI, Full Open
• Removable Serrated Barb Tip (Leaves 1/4" Fem NPT Outlet), attach accessory of your choice
• "Duraline" zero dead leg control valve offers easy open/close operation, 120 deg full flow to closed
• No lubricants or wetted metals used in construction
• All components designed for high traffic, hard use environments
• FDA, USDA, and USP standards are either met and/or exceeded
• Ultra smooth internal flow path
• Unique heavy wall construction
• Control Valve is PTFE sealed, encapsulated PTFE shut off seal for unlimited life
• Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
• Duraline control valve is completely renewable by replacing the internal cartridge, per SEFA 7-2010-8.2a
• Positive stop at off position
• 3/8" Fem NPT inlet supply connection, 3/8" O.D. tube x 3/8" MNPT compression tube fitting inlcluded
