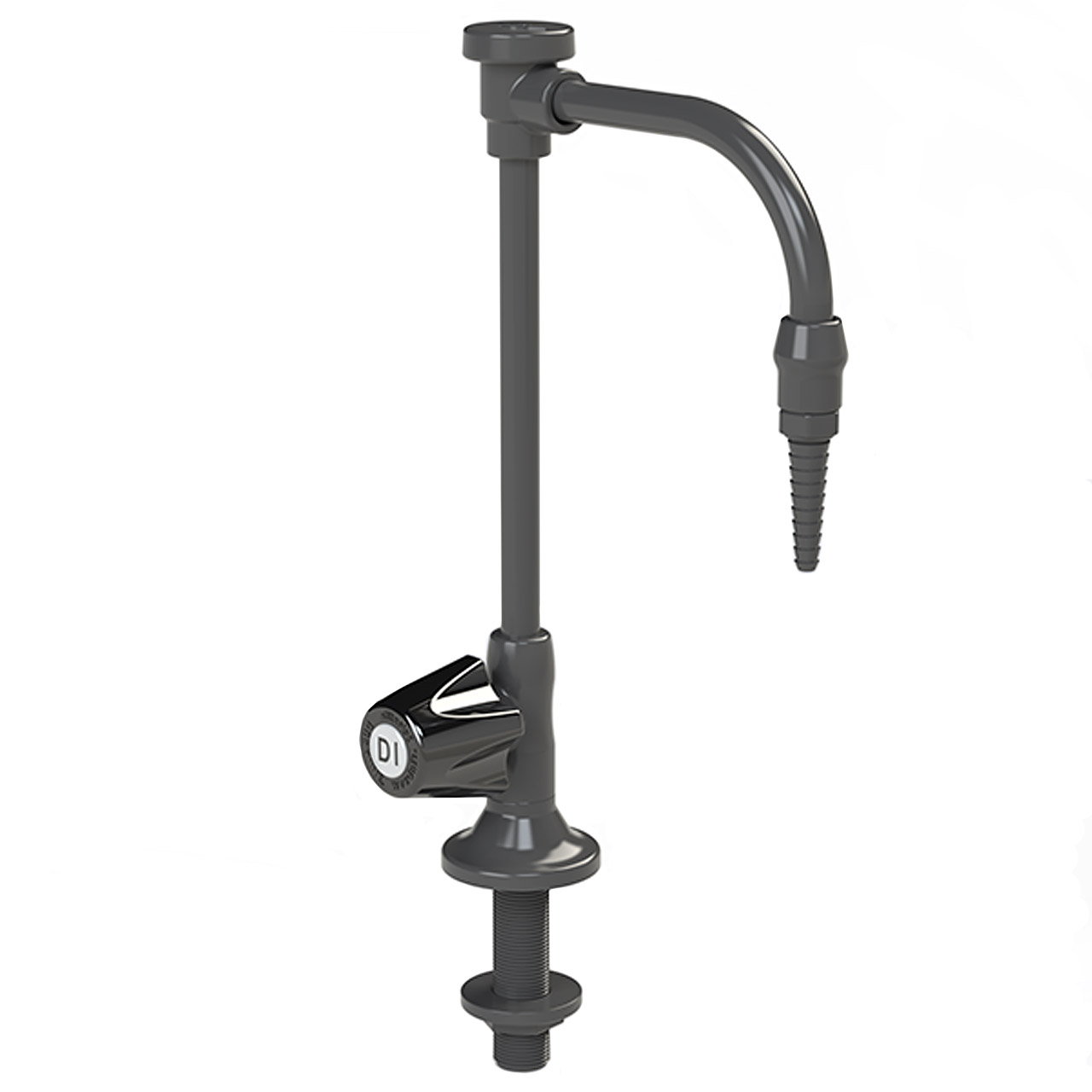

LGV-DD-L1, PVC Lab Faucet, Deck Mount, Integral Atmospheric Vacuum Breaker, Duraline Cntrl Valve, Rem Ser Barb Tip, 3/8" Fem NPT Inlet, Handle on Left

Product Image

• The LG Series PVC Lab Faucet with Atmospheric Vacuum Breaker is designed for use with high purity lab water systems dispensing Type 2 and 3 deionized water, as well as distilled, pharma grade, RO, and ultra-filtered water.
• The integrated atmospheric vacuum breaker prevents back-siphonage within the lab water system, ensuring the purity of the dispensed water
• Maximum flow rate of 2.5 GPM @ 80 PSI, fully open
• Removable serrated barb tip (leaves 1/4" Female NPT outlet) for attaching accessories
• "Duraline" zero dead leg control valve with easy open/close operation, 120-degree full flow to closed
• No lubricants or wetted metals used in construction
• Components designed for high traffic, heavy use environments
• Meets and/or exceeds FDA, USDA, and USP standards
• Ultra-smooth internal flow path and heavy wall construction
• PTFE sealed control valve with encapsulated PTFE shut off seal for extended life
• Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
• Renewable Duraline control valve by replacing the internal cartridge, DL-RC180-PVD per SEFA 7-2010-8.2a
• Positive stop at off position
• 3/8" Female NPT inlet supply connection, with included 3/8" O.D. tube x 3/8" MNPT compression tube fitting
• This PVC faucet is designed to provide reliable, long-lasting performance in laboratory environments where high purity water is required.
• The PVC construction offers excellent chemical resistance and durability, making it suitable for a wide range of applications, including chemical dispensing and reagent-grade water.
