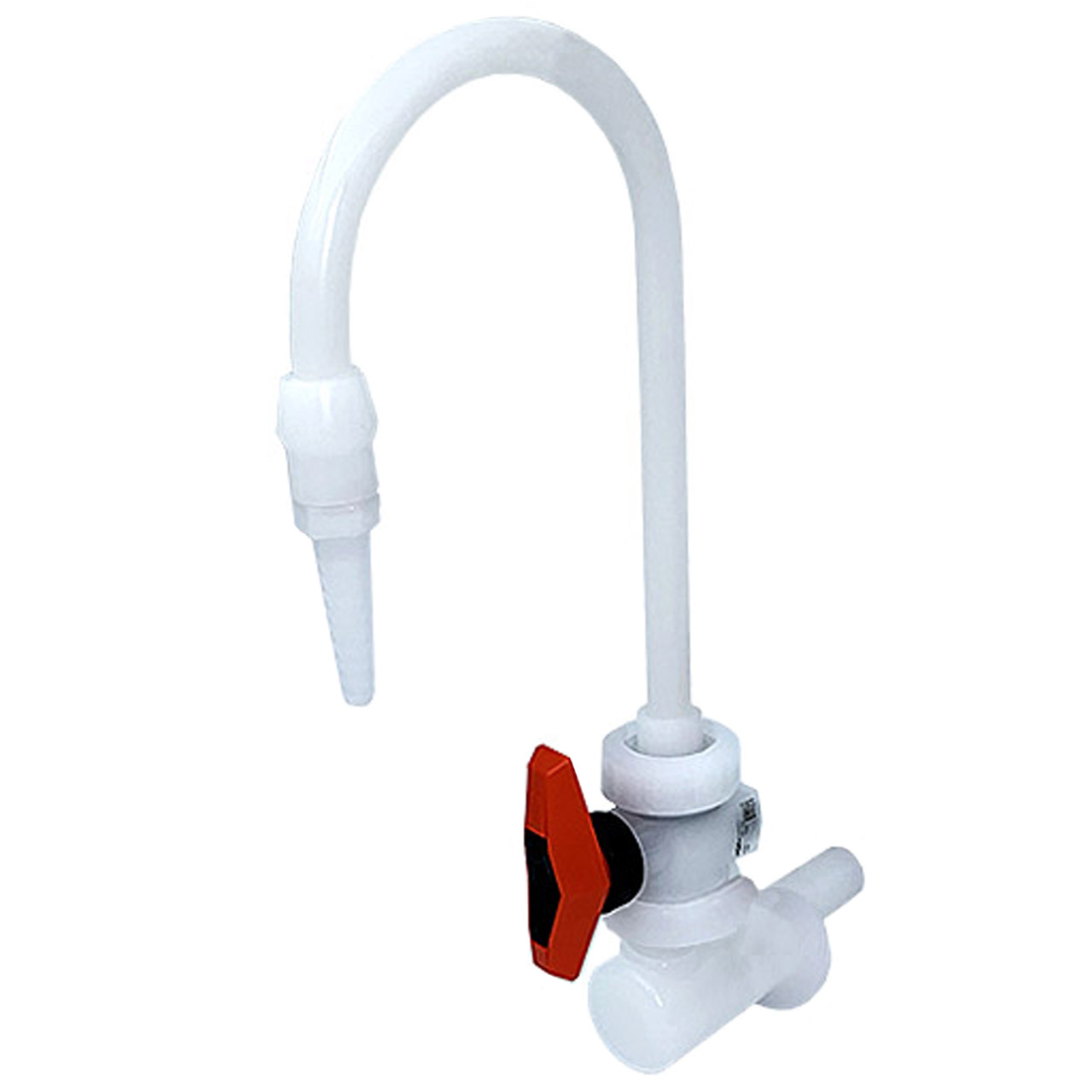

LG-WB-F3, PVDF Lab Faucet, Wall Mount, Rugged 1/4 Turn Union Ball Valve, Serrated Barb Outlet(Accepts 1/4"-1/2" I.D. Tubing), 3/8" Female NPT Inlet Supply Connection, Handle in Front

Product Image

• Flow Data: 6.4 GPM at 70 PSI, Full Open
• Working Pressure: Maximum 150 psi at 70 Degrees Farenheit
• Materials: PVDF, Viton O-Ring Seal
• Materials listed under NSF Standard 14/61 for both potable water and DWV applications and FDA approved FDA, USDA, and USP standards are either met and/or exceeded.
• Beautifully finished to enhance all installations
• All injection molded, rugged design and construction
• Standard 3/8" female NPT inlet connection, other connections available
• Outlet serrated barb fitting accepts 1/4"-1/2" I.D. Soft (Low Durometer) Tubing
• Union Ball Valve provides adjustable orientation of handle and gooseneck, higher flow rates and 1/4 turn on/off.
